8192 maximum 800G configuration

8192 Coherent Router

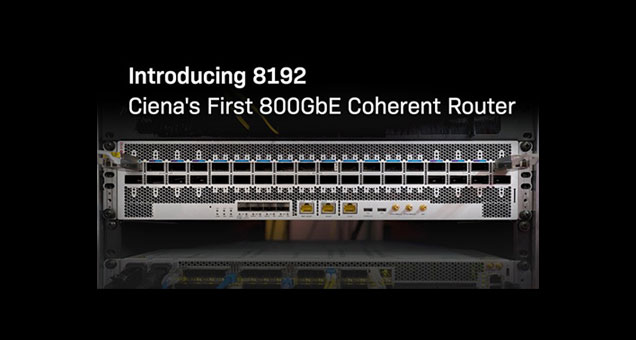

The 8192 is Ciena's first 800GbE router—a 14.4 Tb/s variant to our 8000 family. It's engineered with the flexibility to meet demand today and exponentially higher demand tomorrow while also integrating Ciena’s WaveLogic™ 6 Nano (WL6n). Backward-compatible with 400GbE, 200GbE, and 100GbE, the router's extensibility makes it a great choice for numerous use cases, including high-scale aggregation, metro core, and coherent routing in service provider, enterprise, and data center networks.

Data sheet

Features and benefits

  1. 14.4 Tb/s addition to the 8000 family

  2. Supports 800GbE interfaces

  3. 20 fixed ports for 400/100GbE and 16 flexible ports supporting 8 x 800GbE or 16 x 400/100GbE

  4. Supports WL6n and WaveLogic 5 Nano (WL5n) pluggable optics

  5. Comprehensive feature set with on-chip TCAM acceleration support for scalability

  6. Versatile use cases, including high-scale aggregation, metro core, and coherent routing

Multiple configurations

Extend system lifetime and accommodate bandwidth growth with flexible port options within the same chassis.

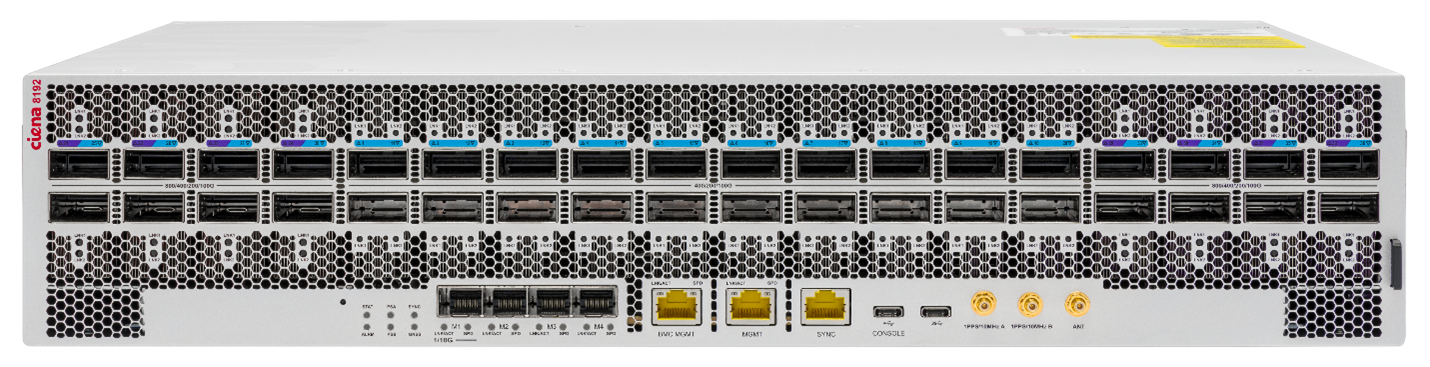

8192 maximum 800G configuration

Maximum 800G

20 x 400GbE QSFP112 ports and 8 x 800G QSFP-DD800 ports, with support for up to eight WL6n pluggables

8192 dense 400G configuration

Dense 400G

36 x 400GbE QSFP112 ports

8192 hybrid 400G configuration

Hybrid 400G

20 x 400GbE QSFP112 ports and 16 x 400G QSFP-DD ports, with support for up to 16 WL5n pluggables
